SiPh 晶圆测试不是一家公司通吃,而是三层分工下的新集成机会

这篇文章最有价值的判断是:SiPh 晶圆测试短期内仍是 AEHR、FORM、KEYS 分工明确的多层生态,但作者把“Teradyne 不构成威胁”说得过满,因为最关键的竞争比较恰好没有公开展开。
打开原文 ↗

2026-04-10 原文链接 ↗
阅读简报
双语对照
完整翻译
原文
讨论归档

核心观点

  • SiPh 测试是量产前置刚需 CPO 封装后的失效成本极高,因此封装前拿到 KGD 不是优化项而是生死线;这意味着晶圆级测试不是可有可无的配套,而是 SiPh 量产成立的前提。
  • 三家各卡一个关键瓶颈 AEHR卡的是 InP 激光器的晶圆级老化筛选,FORM卡的是 FAU 与光栅耦合器的纳米级自动对准,KEYS卡的是真正输出 IL/PDL 等结果的光学测量;这个拆分有现实基础,不是空洞分类。
  • FormFactor 当前更像事实标准 文中给出的“100+领先客户”与行业标准表述虽然带 PR 色彩,但结合其平台、探针卡、软件和校准能力,FORM 在 SiPh 晶圆光学探针环节的领先地位大概率是真实的,而不是纯营销幻觉。
  • Teradyne 的机会更像系统集成层 如果 Photon 100 的核心价值是减少客户自己拼装仪器、软件和流程的负担,那么它切入的是“集成与吞吐优化”这层新价值,而不必然直接替代 AEHR 的老化、FORM 的探针或 KEYS 的测量仪器。
  • 作者的结论有洞见但证据不完整 “Photon 100 不威胁任何一家”是全文最强判断,却被付费墙截断了最关键的对比部分;因此这不是已经被证实的结论,更像一个有吸引力但尚未充分证明的投资论点。

跟我们的关联

  • 对 ATou 意味着什么、下一步怎么用:这篇材料提醒你,判断硬科技机会不能只看终端明星公司,要先拆“谁是量产必经层”;下一步可以把你关注的 AI/机器人/跨境赛道也按“筛选层/执行层/测量层”重画一遍。
  • 对 Neta 意味着什么、下一步怎么用:这是一个很好的产业链认知模板,能帮助你把复杂系统拆成互补而非替代关系;下一步可以用它训练自己区分“看起来都在做测试”与“实际上解决不同瓶颈”的差别。
  • 对 Uota 意味着什么、下一步怎么用:文章最值得借鉴的是“新玩家未必吃掉旧玩家,而是吃集成摩擦”的视角;下一步可以在产品设计里优先寻找用户当前需要自己拼接、多供应商维护的环节。
  • 对 ATou/Neta/Uota 共同意味着什么、下一步怎么用:不要被“大厂发布新品=行业洗牌”带节奏,先问它到底替代单点能力,还是整合现有栈;下一步可以把 Teradyne、Advantest、FormFactor、Keysight 的边界做成一张竞争地图再判断投资或合作。

讨论引子

1. Photon 100 真的是“新增一层”,还是会逐步侵蚀 FORM/KEYS 的价值池,这个边界该怎么验证? 2. 在 SiPh 量产里,真正最稀缺的是老化能力、对准能力,还是把整套测试单元跑顺的软件与系统集成能力? 3. 如果 NVIDIA 的光互连投入最终放量不及预期,三家公司里谁的风险最大,谁的业务韧性更强?

摘要

NVIDIA 在短短一个月内连续对 Lumentum、Coherent 和 Marvell 进行数十亿美元级别的投资,释放出一个明确信号:SiPh 光互连供应链正在进入真正的量产模式。在这些晶圆进入 CPO 封装之前,都必须先通过晶圆级测试(WLT)。3 月 17 日在 OFC 上,Teradyne 发布了 Photon 100,一款为 SiPh 专门打造的集成式 ATE。对任何投资者来说,一个自然的问题是:这会不会威胁现有的 SiPh 测试设备厂商?本文会直接回答这个问题。SiPh 的 WLT 生态由三个互不重叠的角色构成:老化筛选(AEHR)、晶圆光学探针(FORM)以及光学测量(KEYS)。Photon 100 并不是它们任何一家公司的竞争对手。它填补的是一个此前并不存在的位置。而当把 Teradyne 放在更广义的半导体 ATE 市场版图中来看,这一步对整个 SiPh 测试生态都带有结构性的信号意义。

目录

  1. 为什么 SiPh 测试如此苛刻

  2. 三大支柱:AEHR、FORM 与 KEYS Aehr Test Systems:老化筛选 FormFactor:晶圆光学探针 Keysight Technologies:光学测量

  3. Teradyne Photon 100:这次发布真正意味着什么

  4. 总结:三家公司

  5. 这个市场有多大,它会如何增长

  6. 结语

NVIDIA 在一个月内宣布了三项光学合作。

3 月 2 日,它宣布与 Lumentum(LITE)和 Coherent(COHR)达成战略合作,同时对两家公司各投资 20 亿美元,并附带多年期采购承诺。[1] 3 月 31 日,它又把 Marvell(MRVL)加入名单,同样投资 20 亿美元。[2] Marvell 的公告在与 NVLink Fusion 兼容的定制 XPU 合作之外,还明确包含共同开发“光互连解决方案与硅光子技术”。

NVIDIA 的 40 亿美元光子押注:Broadcom 没看错,但市场把信号完全读反了

这三项合作都指向同一件事:以 SiPh 为基础的光互连将成为下一代 AI 基础设施的骨干。Lumentum 和 Coherent 需要开始规模化生产激光器与光学器件,而其中每一片晶圆在接近任何 CPO 封装之前都必须通过测试。没有晶圆级测试,就不可能拿到 Known Good Dies(KGD)。

那么,测试由谁来做?

本文会介绍掌握 SiPh 晶圆测试生态的三家公司。也会拆解 Teradyne(TER)Photon 100 的发布对它们究竟意味着什么,以及市场接下来会走向哪里。

1. 为什么 SiPh 测试如此苛刻

CPO 把 GPU 芯片与光子集成电路(PIC)集成到同一个封装中。如果缺陷在封装后才暴露,就得报废整个模块,成本可能高达数千美元。在封装前拿到 KGD 不是可选项,这正是 WLT 存在的全部理由。

有两个具体挑战,使得 SiPh 的 WLT 格外困难。

第一,用作光源的化合物半导体,尤其是基于磷化铟(InP)的激光二极管,非常容易发生热退化。老化测试通过施加强烈的电应力与热应力来筛除早期失效(婴儿死亡),属于必做环节。

第二,将光纤阵列单元(FAU)与晶圆表面的光栅耦合器对准,需要达到 纳米级精度。FAU 的耦合效率是决定 SiPh 器件性能的关键因素之一,[3] 即使极轻微的偏移也会带来插入损耗。在量产规模下把这种对准自动化,是 SiPh 高产量制造中最大的单点瓶颈。

Citrini/Hunterbrook HIMX 报告解析:是的,COUPE 微透镜垄断确实存在。但市场忽略了更大的图景。

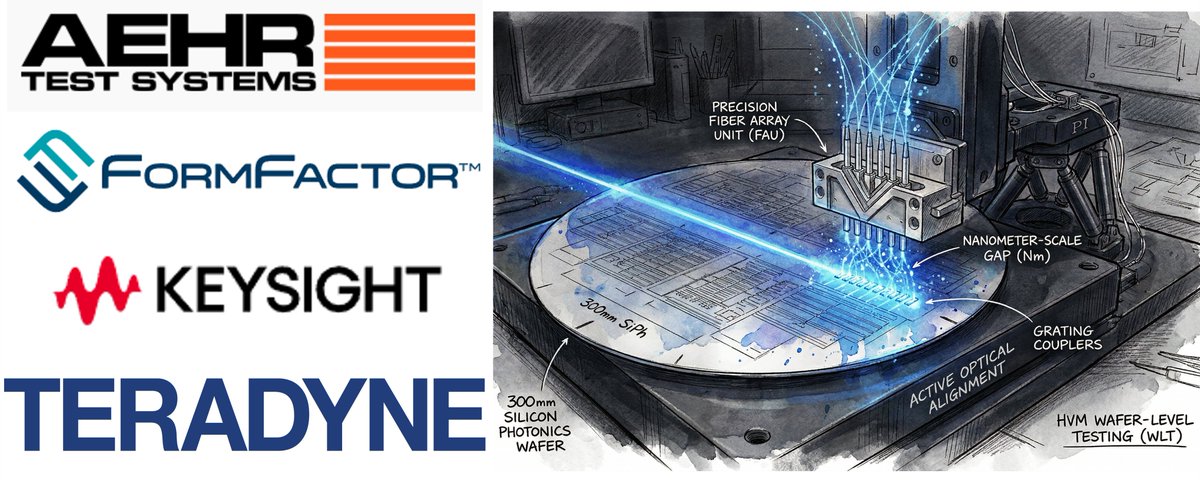

SiPh WLT 的两大核心挑战:针对化合物半导体的老化筛选,以及纳米级光学对准的自动化。

2. 三大支柱

SiPh 的 WLT 产线可拆成三个清晰的层级。每一层都有专属玩家,而且彼此没有重叠。

Aehr Test Systems(AEHR):老化筛选

Aehr Test Systems 是一家纯粹做晶圆级老化(WLBI)的公司。

基于 InP 的激光二极管对电应力与热应力都很敏感。老化的目标是在最早阶段施加强而集中的应力,让薄弱器件在进入封装前就先暴露并失效。把这件事放在晶圆层级、在单颗 die 分割之前完成,就是 WLBI 的核心。与之相比,在激光器已经被封进 CPO 模块之后才发现缺陷,代价要高得多。

https://formfactor.com/product/probes/specialty/pharos-probe-series/

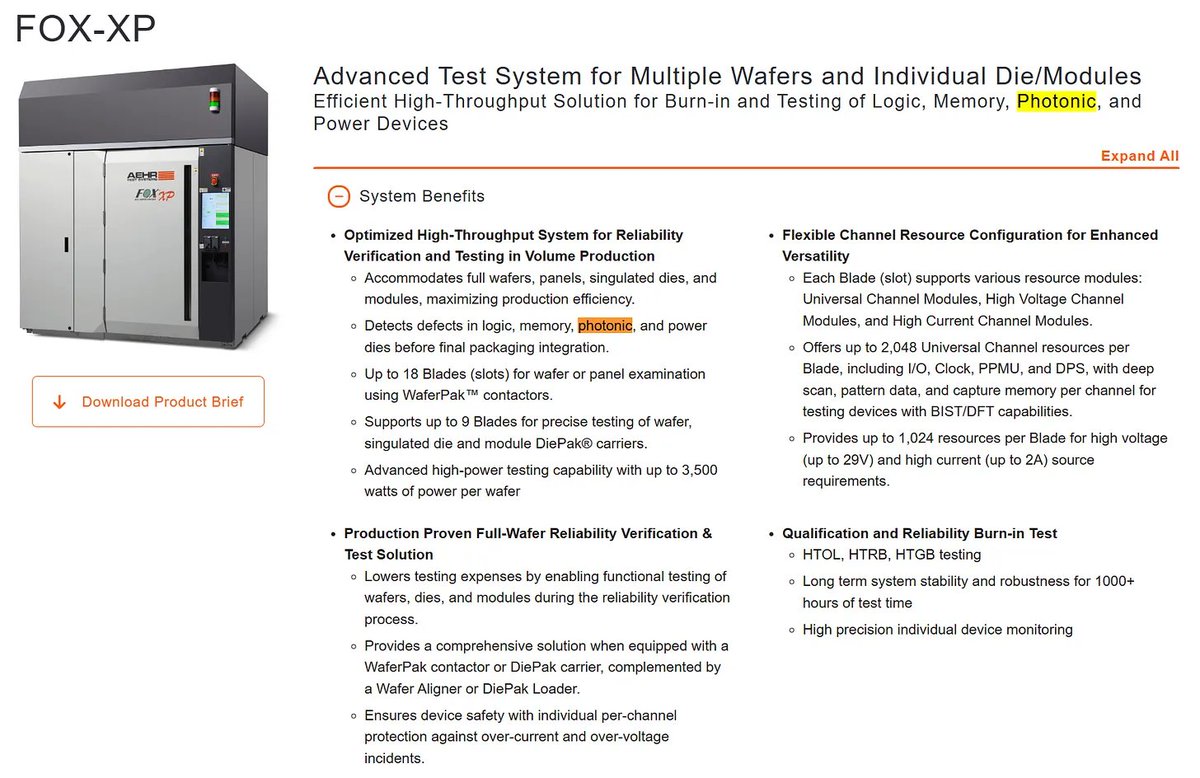

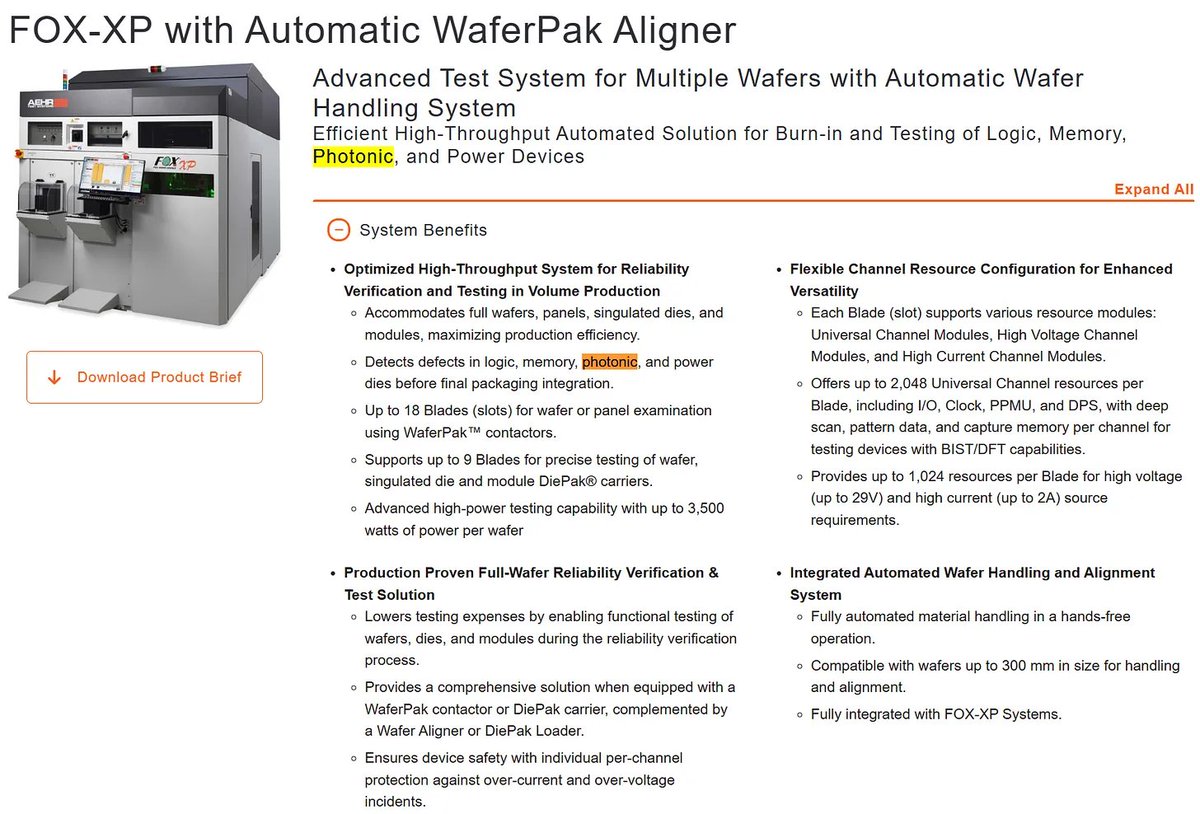

Aehr 的核心平台是 FOX-XP,在高功率老化配置下可实现每片晶圆最高 3,500 瓦 的施加能力,同时并行处理 9 片晶圆。该高功率 FOX-XP 配置已经在全球顶级 SiPh IC 供应商处完成安装并投入量产运行。[4]

3 月 31 日,也就是 NVIDIA 与 Marvell 合作公告发布的同一天,Aehr 披露拿下了一位重要新客户。该客户被描述为全球网络产品领导者,同时也是数据中心光模块市场的主要供应商,已下达 SiPh WLBI 系统的首笔订单。[4] 该客户正在为超大规模 AI 与云数据中心部署开发基于 SiPh 的收发器与 Optical I/O 产品。订单包含一套可并行处理 9 片晶圆的 FOX-XP 系统、一台 WaferPak Auto Aligner、多台 FOX-NP 系统,以及全套量产用的 WaferPak Contactors。发货计划安排在 Aehr 截至 2026 年 5 月 29 日的 2026 财年 Q4 期间。客户已提供后续系统的预测,追加订单最早可能在本日历年稍晚时候出现。

Aehr CEO Gayn Erickson 强调,客户一开始就同时采购了用于工程验证与高产量制造的系统,这反映出当前爬坡的紧迫性。随着 SiPh 激光晶圆产量上升,WLBI 需求会直接随之增长。

FormFactor(FORM):晶圆光学探针

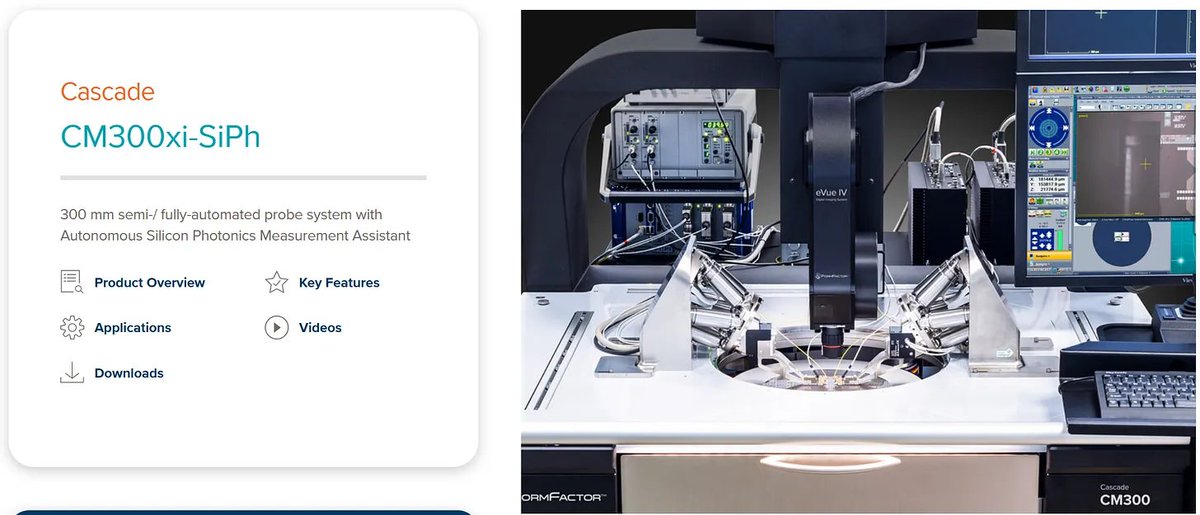

https://www.psirep.com/products/formfactor-cascade-cm300xi-siph-300-mm-semi-fully-automated-probe-system-autonomous-silicon

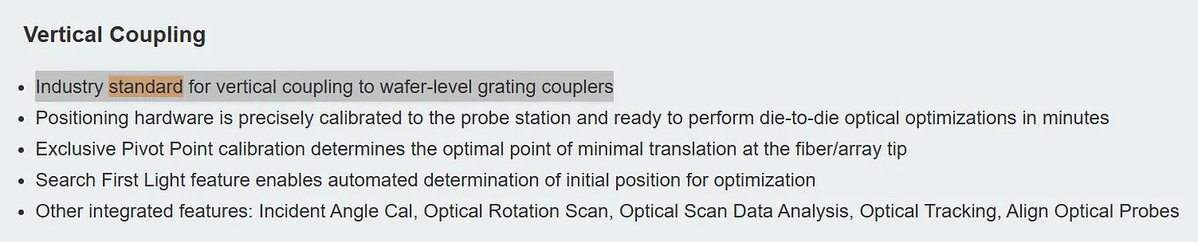

FormFactor 是 SiPh 晶圆探针领域的行业标准。其经销商 PSI Solutions 将 CM300xi-SiPh 描述为“面向晶圆级光栅耦合器垂直耦合的行业标准”,[5] 该系统目前已在全球超过 100 家领先的 SiPh 器件制造商处使用。[6]

https://photoncap.substack.com/p/nvidias-4-billion-photonics-bet-broadcom

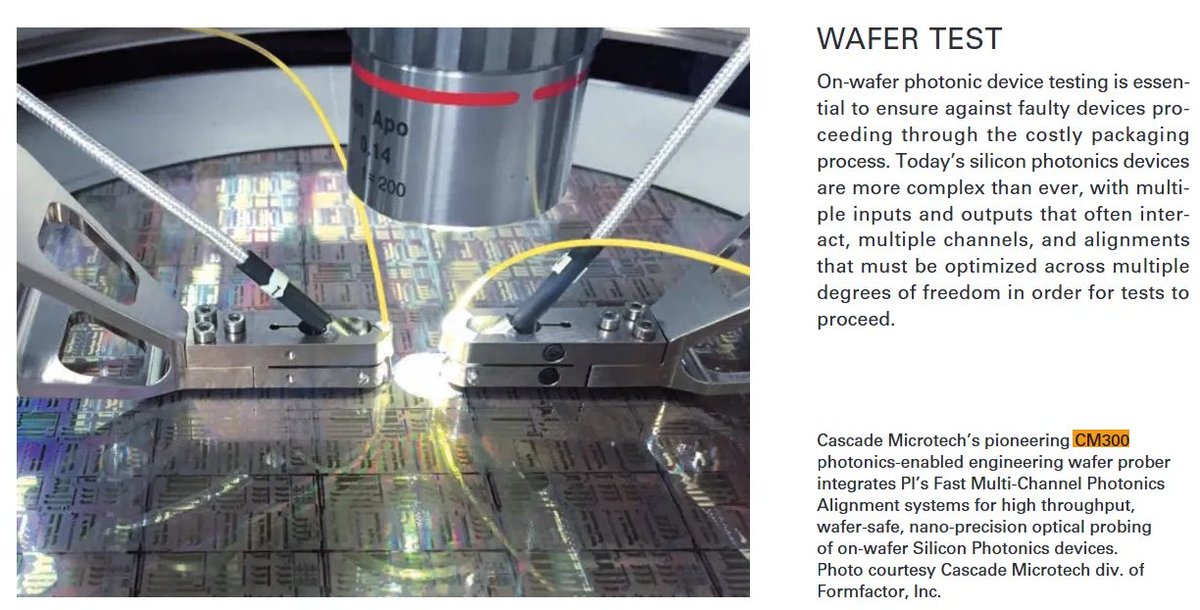

CM300xi-SiPh 在系统内部直接集成了一套来自德国 Physik Instrumente(PI)的六轴高精度六足并联(hexapod)运动平台。[7] 这套机构负责以纳米级精度完成 FAU 与晶圆光栅耦合器之间的主动对准。FormFactor 的官方资料把 PI(定位)与 Keysight Technologies(测量仪器)同时列为 SiPh WLT 的“Preferred Partners”,[8] 这基本说明了生态的分工结构。

https://photoncap.substack.com/p/citrinihunterbrook-himx-report-analysis

在 PI hexapod 之上,系统还随附 Pharos 探针卡、[9] SiPh-Tools 软件,以及 OptoVue 自主校准系统,[9] 组合成一套安装后即可直接进入量产测量的解决方案。FormFactor 自己的描述是:“市场上首个经过验证的一体化测量解决方案,安装后无需进一步开发即可进行工程与量产验证过的、优化的光学测量。”

2025 年 12 月,FormFactor 收购了 Keystone Photonics,这是一家专注于 SiPh 探测用光耦合技术的厂商。[10] 管理层称这次收购强化了其“lab-to-fab”定位,也就是从早期研发到高产量制造的测试连续性。

Keysight Technologies(KEYS):光学测量

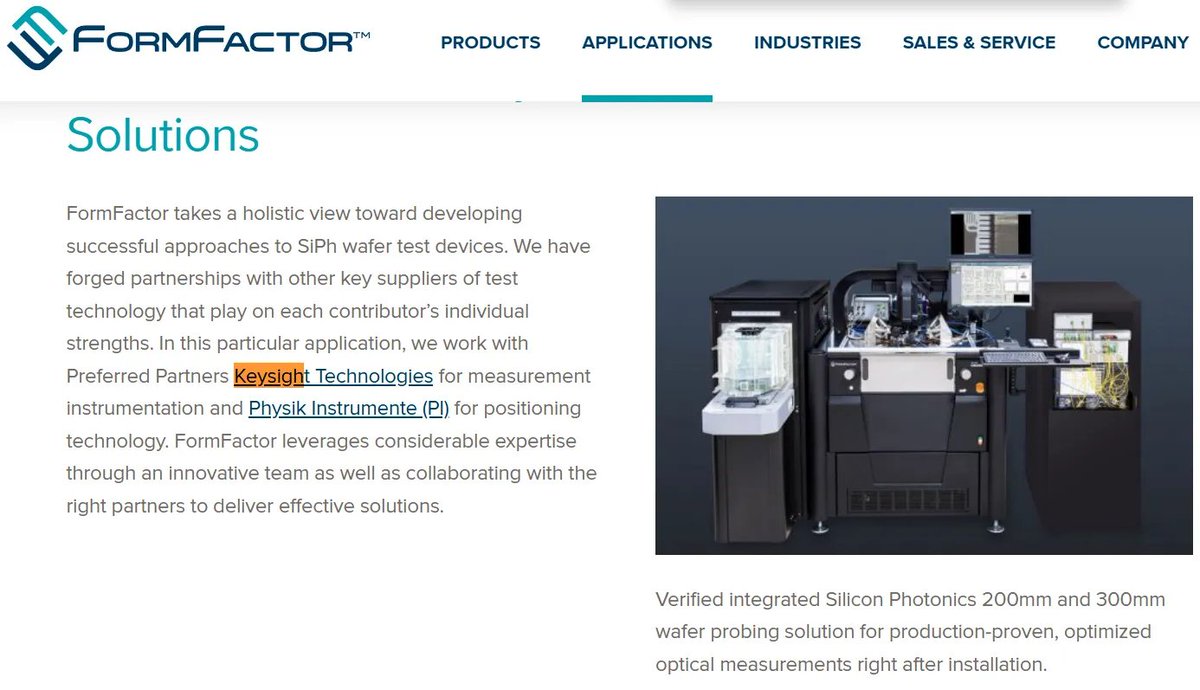

Keysight 作为 FormFactor 官方的 Preferred Partner,负责光学测量侧,提供真正发射与接收光信号并提取测量数据的仪器。[8]

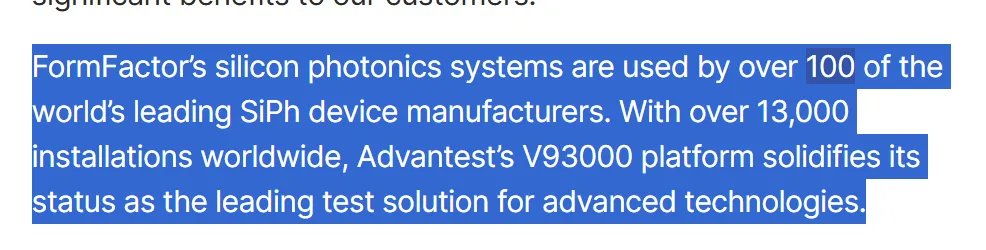

https://www.nasdaq.com/press-release/formfactor-and-advantest-partner-silicon-photonics-wafer-level-test-cell-enable-high

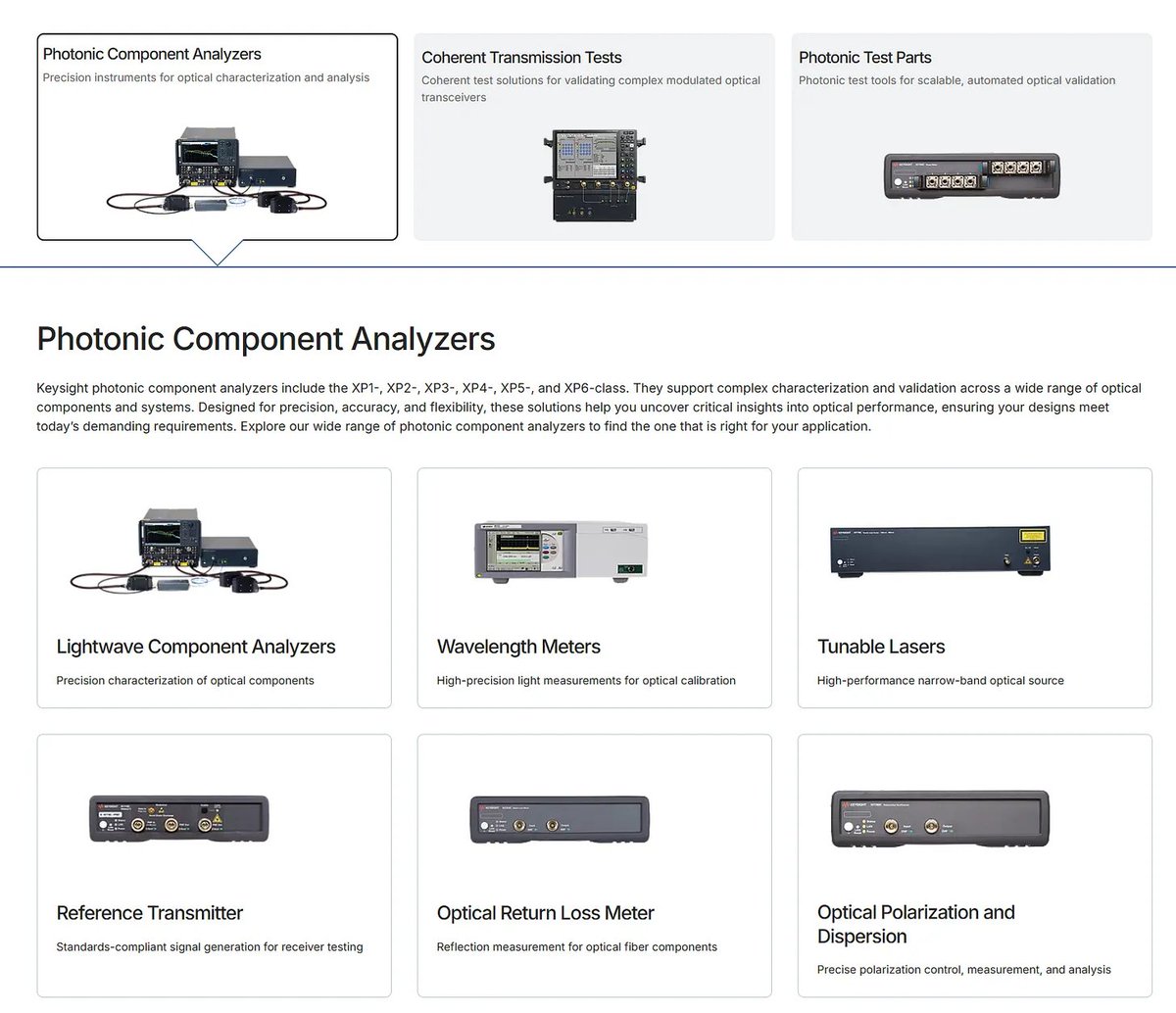

在晶圆层级,这意味着用于测量插入损耗(IL)与偏振相关损耗(PDL)的可调谐激光源(TLS)与功率计(PM),以及光谱分析仪(OSA)。在封装与模块层级,则意味着用于验证 800G 与 1.6T 收发器信号完整性(SI)的 BERT 与示波器。

历史上,客户购买 CM300xi-SiPh 系统后,会另行采购这些仪器,自行做软件集成,并自己维护这个多厂商堆栈。在工程环境里这还算可行。但在 HVM 规模下,这种集成负担会变成生产瓶颈。

3. Teradyne Photon 100:这次发布真正意味着什么

...

🔒 完整报告与深度解析仅对 PhotonCap 订阅者开放。

https://photoncap.substack.com/p/the-three-pillars-of-siph-wafer-test

参考文献与来源

[1] NVIDIA’s $4 Billion Photonics Bet(PhotonCap):对 NVIDIA 与 Lumentum、Coherent 合作及 40 亿美元投资的深度解析。涵盖光互连的物理逻辑与 CPO 价值链影响。

[2] Marvell and NVIDIA Strategic Partnership:发布于 2026 年 3 月 31 日。包含与 NVLink Fusion 兼容的定制 XPU 合作以及 SiPh 技术联合开发,并提到 NVIDIA 对 Marvell 的 20 亿美元投资。

[3] Citrinihunterbrook HIMX Report Analysis(PhotonCap):对 Himax Technologies 晶圆级光学(WLO)与 FAU 技术的解析。讨论耦合效率作为影响 SiPh 器件性能的结构性变量。

[4] Aehr Wins Major New Silicon Photonics Customer:新闻稿,2026 年 3 月 31 日。新客户为全球网络产品领导者及数据中心光模块主要供应商。订单包含 FOX-XP(9 片晶圆并行、最高 3,500W/wafer)、FOX-NP 系统与 WaferPak Contactors。发货计划为截至 2026 年 5 月 29 日的 2026 财年 Q4。

[5] PSI Solutions:CM300xi-SiPh 产品页:将 CM300xi-SiPh 列为“面向晶圆级光栅耦合器垂直耦合的行业标准”。

[6] FormFactor and Advantest Partner on SiPh Wafer-Level Test Cell:发布于 2024 年 11 月。确认 FormFactor 的 SiPh 系统已在全球超过 100 家领先 SiPh 制造商处使用。

[7] PI Fast Silicon Photonics Alignment:Physik Instrumente 产品目录。集成到 CM300xi-SiPh 的高精度多通道光子对准系统。与 Cascade Microtech(现为 FormFactor)合作开发。

[8] FormFactor:Moving Silicon Photonics from the Lab to the Fab:将 Keysight Technologies(仪器)与 PI(定位)列为 SiPh WLT 的官方 Preferred Partners。

[9] FormFactor Pharos Probe Series:面向 CM300xi-SiPh 的 SiPh 专用探针卡。把电学针脚与光纤阵列整合到同一接口中。

[10] FormFactor Acquires Keystone Photonics:2025 年 12 月 15 日。收购光耦合技术专家以增强 SiPh 探测能力。

Abstract

摘要

NVIDIA’s string of multibillion-dollar investments in Lumentum, Coherent, and Marvell over the span of a single month signals that the SiPh optical interconnect supply chain is moving into serious production mode. Before any of those wafers can go into CPO packaging, they have to pass wafer-level test (WLT). On March 17 at OFC, Teradyne introduced the Photon 100, a purpose-built integrated ATE for SiPh. A natural question for any investor: does this threaten the existing SiPh test equipment players? This article answers that question directly. The SiPh WLT ecosystem is divided into three non-overlapping roles: burn-in screening (AEHR), wafer optical probing (FORM), and optical measurement (KEYS). Photon 100 is not a competitor to any of them. It fills a position that did not previously exist. And when you consider where Teradyne sits in the broader semiconductor ATE market, this move carries a structural message for the entire SiPh test ecosystem.

NVIDIA 在短短一个月内连续对 Lumentum、Coherent 和 Marvell 进行数十亿美元级别的投资,释放出一个明确信号:SiPh 光互连供应链正在进入真正的量产模式。在这些晶圆进入 CPO 封装之前,都必须先通过晶圆级测试(WLT)。3 月 17 日在 OFC 上,Teradyne 发布了 Photon 100,一款为 SiPh 专门打造的集成式 ATE。对任何投资者来说,一个自然的问题是:这会不会威胁现有的 SiPh 测试设备厂商?本文会直接回答这个问题。SiPh 的 WLT 生态由三个互不重叠的角色构成:老化筛选(AEHR)、晶圆光学探针(FORM)以及光学测量(KEYS)。Photon 100 并不是它们任何一家公司的竞争对手。它填补的是一个此前并不存在的位置。而当把 Teradyne 放在更广义的半导体 ATE 市场版图中来看,这一步对整个 SiPh 测试生态都带有结构性的信号意义。

Contents

目录

  1. Why SiPh Testing Is So Demanding
  1. 为什么 SiPh 测试如此苛刻
  1. The Three Pillars: AEHR, FORM, and KEYS Aehr Test Systems: Burn-In Screening FormFactor: Wafer Optical Probing Keysight Technologies: Optical Measurement
  1. 三大支柱:AEHR、FORM 与 KEYS Aehr Test Systems:老化筛选 FormFactor:晶圆光学探针 Keysight Technologies:光学测量
  1. Teradyne Photon 100: What the Announcement Actually Means
  1. Teradyne Photon 100:这次发布真正意味着什么
  1. Summary: The Three Companies
  1. 总结:三家公司
  1. How Big Is This Market, and How Does It Grow
  1. 这个市场有多大,它会如何增长
  1. Closing
  1. 结语

NVIDIA announced three optical partnerships in the span of a month.

NVIDIA 在一个月内宣布了三项光学合作。

On March 2, it announced strategic partnerships with both Lumentum (LITE) and Coherent (COHR), investing $2 billion in each alongside multi-year purchase commitments.[1] On March 31, it added Marvell (MRVL) to that list, again with a $2 billion investment.[2] The Marvell announcement explicitly includes joint development of “optical interconnect solutions and silicon photonics technology” on top of the NVLink Fusion-compatible custom XPU collaboration.

3 月 2 日,它宣布与 Lumentum(LITE)和 Coherent(COHR)达成战略合作,同时对两家公司各投资 20 亿美元,并附带多年期采购承诺。[1] 3 月 31 日,它又把 Marvell(MRVL)加入名单,同样投资 20 亿美元。[2] Marvell 的公告在与 NVLink Fusion 兼容的定制 XPU 合作之外,还明确包含共同开发“光互连解决方案与硅光子技术”。

NVIDIA's $4 Billion Photonics Bet: Broadcom Wasn't Wrong — But the Market Completely Misread the Signal

NVIDIA 的 40 亿美元光子押注:Broadcom 没看错,但市场把信号完全读反了

All three partnerships point at the same thing: SiPh-based optical interconnects as the backbone of next-generation AI infrastructure. Lumentum and Coherent now need to produce lasers and optical components at scale, and every one of those wafers has to pass test before it goes anywhere near a CPO package. You cannot secure Known Good Dies (KGD) without wafer-level test.

这三项合作都指向同一件事:以 SiPh 为基础的光互连将成为下一代 AI 基础设施的骨干。Lumentum 和 Coherent 需要开始规模化生产激光器与光学器件,而其中每一片晶圆在接近任何 CPO 封装之前都必须通过测试。没有晶圆级测试,就不可能拿到 Known Good Dies(KGD)。

So who does the testing?

那么,测试由谁来做?

This article covers the three companies that own the SiPh wafer test ecosystem. It also breaks down what Teradyne’s (TER) Photon 100 announcement actually means for them, and where the market goes from here.

本文会介绍掌握 SiPh 晶圆测试生态的三家公司。也会拆解 Teradyne(TER)Photon 100 的发布对它们究竟意味着什么,以及市场接下来会走向哪里。

1. Why SiPh Testing Is So Demanding

1. 为什么 SiPh 测试如此苛刻

CPO integrates GPU dies with Photonic Integrated Circuits (PIC) into a single package. If a defect shows up after packaging, you scrap the entire module, which can run thousands of dollars. Securing KGD before packaging is not optional; it is the entire reason WLT exists.

CPO 把 GPU 芯片与光子集成电路(PIC)集成到同一个封装中。如果缺陷在封装后才暴露,就得报废整个模块,成本可能高达数千美元。在封装前拿到 KGD 不是可选项,这正是 WLT 存在的全部理由。

Two specific challenges make SiPh WLT uniquely difficult.

有两个具体挑战,使得 SiPh 的 WLT 格外困难。

First, the compound semiconductors used as light sources, particularly Indium Phosphide (InP)-based laser diodes, are highly vulnerable to thermal degradation. Burn-in testing, applying concentrated electrical and thermal stress to screen out early failures (infant mortality), is mandatory.

第一,用作光源的化合物半导体,尤其是基于磷化铟(InP)的激光二极管,非常容易发生热退化。老化测试通过施加强烈的电应力与热应力来筛除早期失效(婴儿死亡),属于必做环节。

Second, aligning a Fiber Array Unit (FAU) to the grating couplers on the wafer surface requires nanometer-level precision. FAU coupling efficiency is a determining factor in SiPh device performance,[3] and even slight misalignment produces insertion loss. Automating this alignment at production scale is the single biggest bottleneck in SiPh high-volume manufacturing.

第二,将光纤阵列单元(FAU)与晶圆表面的光栅耦合器对准,需要达到 纳米级精度。FAU 的耦合效率是决定 SiPh 器件性能的关键因素之一,[3] 即使极轻微的偏移也会带来插入损耗。在量产规模下把这种对准自动化,是 SiPh 高产量制造中最大的单点瓶颈。

Citrini/Hunterbrook HIMX Report Analysis: Yes, the COUPE Microlens Monopoly Is Real. But the Market Is Missing the Bigger Picture.

Citrini/Hunterbrook HIMX 报告解析:是的,COUPE 微透镜垄断确实存在。但市场忽略了更大的图景。

Two core challenges for SiPh WLT: burn-in screening for compound semiconductors, and automating nm-level optical alignment.

SiPh WLT 的两大核心挑战:针对化合物半导体的老化筛选,以及纳米级光学对准的自动化。

2. The Three Pillars

2. 三大支柱

The SiPh WLT line breaks into three distinct layers. Each has a dedicated player, and none of them overlap.

SiPh 的 WLT 产线可拆成三个清晰的层级。每一层都有专属玩家,而且彼此没有重叠。

Aehr Test Systems (AEHR): Burn-In Screening

Aehr Test Systems(AEHR):老化筛选

Aehr Test Systems is a pure-play wafer-level burn-in (WLBI) company.

Aehr Test Systems 是一家纯粹做晶圆级老化(WLBI)的公司。

InP-based laser diodes are susceptible to both electrical and thermal stress. The goal of burn-in is to apply that stress early and hard, forcing weak devices to fail before they reach packaging. Doing this at the wafer level, before individual die separation, is what WLBI is about. The cost of discovering a defective laser after it has been packaged into a CPO module is far higher than catching it at the wafer stage.

基于 InP 的激光二极管对电应力与热应力都很敏感。老化的目标是在最早阶段施加强而集中的应力,让薄弱器件在进入封装前就先暴露并失效。把这件事放在晶圆层级、在单颗 die 分割之前完成,就是 WLBI 的核心。与之相比,在激光器已经被封进 CPO 模块之后才发现缺陷,代价要高得多。

Aehr’s core platform is the FOX-XP, capable of applying up to 3,500 watts per wafer in a high-power burn-in configuration while processing nine wafers in parallel. That high-power FOX-XP configuration is already installed and running in production at a world-leading SiPh IC supplier.[4]

Aehr 的核心平台是 FOX-XP,在高功率老化配置下可实现每片晶圆最高 3,500 瓦 的施加能力,同时并行处理 9 片晶圆。该高功率 FOX-XP 配置已经在全球顶级 SiPh IC 供应商处完成安装并投入量产运行。[4]

On March 31, the same day as the NVIDIA-Marvell partnership announcement, Aehr disclosed a significant new customer win. A major new customer described as a global leader in networking products and a major supplier to the data center optical transceiver market placed an initial order for SiPh WLBI systems.[4] The customer is developing SiPh-based transceivers and Optical I/O products for hyperscale AI and cloud data center deployments. The order covers a FOX-XP system configured for nine wafers in parallel, a WaferPak Auto Aligner, multiple FOX-NP systems, and full production sets of WaferPak Contactors. Shipment is scheduled within Aehr’s fiscal Q4 ending May 29, 2026. The customer has already provided a forecast for additional systems, with follow-on orders possible as early as later this calendar year.

3 月 31 日,也就是 NVIDIA 与 Marvell 合作公告发布的同一天,Aehr 披露拿下了一位重要新客户。该客户被描述为全球网络产品领导者,同时也是数据中心光模块市场的主要供应商,已下达 SiPh WLBI 系统的首笔订单。[4] 该客户正在为超大规模 AI 与云数据中心部署开发基于 SiPh 的收发器与 Optical I/O 产品。订单包含一套可并行处理 9 片晶圆的 FOX-XP 系统、一台 WaferPak Auto Aligner、多台 FOX-NP 系统,以及全套量产用的 WaferPak Contactors。发货计划安排在 Aehr 截至 2026 年 5 月 29 日的 2026 财年 Q4 期间。客户已提供后续系统的预测,追加订单最早可能在本日历年稍晚时候出现。

Aehr CEO Gayn Erickson highlighted that the customer purchased systems for both engineering qualification and high-volume production upfront, which reflects the urgency of the ramp already underway. As SiPh laser wafer production volumes increase, WLBI demand follows directly.

Aehr CEO Gayn Erickson 强调,客户一开始就同时采购了用于工程验证与高产量制造的系统,这反映出当前爬坡的紧迫性。随着 SiPh 激光晶圆产量上升,WLBI 需求会直接随之增长。

FormFactor (FORM): Wafer Optical Probing

FormFactor(FORM):晶圆光学探针

FormFactor is the industry standard for SiPh wafer probing. Its distributor PSI Solutions lists the CM300xi-SiPh as the “Industry standard for vertical coupling to wafer-level grating couplers,”[5] and the system is currently in use at over 100 leading SiPh device manufacturers worldwide.[6]

FormFactor 是 SiPh 晶圆探针领域的行业标准。其经销商 PSI Solutions 将 CM300xi-SiPh 描述为“面向晶圆级光栅耦合器垂直耦合的行业标准”,[5] 该系统目前已在全球超过 100 家领先的 SiPh 器件制造商处使用。[6]

The CM300xi-SiPh has a six-axis precision hexapod motion stage from Germany’s Physik Instrumente (PI) built directly into the system.[7] This handles the active alignment of the FAU to the wafer’s grating couplers at nm-level precision. FormFactor’s official documentation lists both PI (positioning) and Keysight Technologies (measurement instrumentation) as “Preferred Partners” for SiPh WLT,[8] which tells you a lot about how the ecosystem is structured.

CM300xi-SiPh 在系统内部直接集成了一套来自德国 Physik Instrumente(PI)的六轴高精度六足并联(hexapod)运动平台。[7] 这套机构负责以纳米级精度完成 FAU 与晶圆光栅耦合器之间的主动对准。FormFactor 的官方资料把 PI(定位)与 Keysight Technologies(测量仪器)同时列为 SiPh WLT 的“Preferred Partners”,[8] 这基本说明了生态的分工结构。

On top of the PI hexapod, the system ships with the Pharos probe card,[9] SiPh-Tools software, and the OptoVue autonomous calibration system, all packaged into a solution that is ready for production measurements immediately after installation. FormFactor’s own description: “first verified integrated measurement solution on the market that enables engineering and production-proven, optimized optical measurements right after installation, without further development.”

在 PI hexapod 之上,系统还随附 Pharos 探针卡、[9] SiPh-Tools 软件,以及 OptoVue 自主校准系统,[9] 组合成一套安装后即可直接进入量产测量的解决方案。FormFactor 自己的描述是:“市场上首个经过验证的一体化测量解决方案,安装后无需进一步开发即可进行工程与量产验证过的、优化的光学测量。”

In December 2025, FormFactor acquired Keystone Photonics, a specialist in optical coupling technology for SiPh probing.[10] Management described the acquisition as reinforcing their “lab-to-fab” position, meaning test continuity from early R&D through high-volume production.

2025 年 12 月,FormFactor 收购了 Keystone Photonics,这是一家专注于 SiPh 探测用光耦合技术的厂商。[10] 管理层称这次收购强化了其“lab-to-fab”定位,也就是从早期研发到高产量制造的测试连续性。

Keysight Technologies (KEYS): Optical Measurement

Keysight Technologies(KEYS):光学测量

Keysight handles the optical measurement side as FormFactor’s official Preferred Partner, supplying the instruments that actually send and receive optical signals and extract measurement data.[8]

Keysight 作为 FormFactor 官方的 Preferred Partner,负责光学测量侧,提供真正发射与接收光信号并提取测量数据的仪器。[8]

At the wafer level, that means Tunable Laser Sources (TLS) and Power Meters (PM) for measuring insertion loss (IL) and polarization-dependent loss (PDL), alongside Optical Spectrum Analyzers (OSA). At the package and module level, it means BERTs and oscilloscopes for verifying the signal integrity (SI) of 800G and 1.6T transceivers.

在晶圆层级,这意味着用于测量插入损耗(IL)与偏振相关损耗(PDL)的可调谐激光源(TLS)与功率计(PM),以及光谱分析仪(OSA)。在封装与模块层级,则意味着用于验证 800G 与 1.6T 收发器信号完整性(SI)的 BERT 与示波器。

Historically, customers buying CM300xi-SiPh systems sourced these instruments separately, integrated the software themselves, and maintained the multi-vendor stack on their own. That worked well enough in engineering environments. At HVM scale, that integration burden becomes a production bottleneck.

历史上,客户购买 CM300xi-SiPh 系统后,会另行采购这些仪器,自行做软件集成,并自己维护这个多厂商堆栈。在工程环境里这还算可行。但在 HVM 规模下,这种集成负担会变成生产瓶颈。

3. Teradyne Photon 100: What the Announcement Actually Means

3. Teradyne Photon 100:这次发布真正意味着什么

...

...

🔒 The full report and in-depth analysis are exclusive to PhotonCap subscribers.

🔒 完整报告与深度解析仅对 PhotonCap 订阅者开放。

https://photoncap.substack.com/p/the-three-pillars-of-siph-wafer-test

https://photoncap.substack.com/p/the-three-pillars-of-siph-wafer-test

References & Sources

参考文献与来源

[1] NVIDIA’s $4 Billion Photonics Bet (PhotonCap): Deep-dive analysis of NVIDIA’s Lumentum and Coherent partnerships and the $4B investment. Covers the physics case for optical interconnects and CPO value chain implications.

[1] NVIDIA’s $4 Billion Photonics Bet(PhotonCap):对 NVIDIA 与 Lumentum、Coherent 合作及 40 亿美元投资的深度解析。涵盖光互连的物理逻辑与 CPO 价值链影响。

[2] Marvell and NVIDIA Strategic Partnership: Announced March 31, 2026. NVLink Fusion-compatible custom XPU collaboration and joint SiPh technology development. NVIDIA’s $2 billion investment in Marvell.

[2] Marvell and NVIDIA Strategic Partnership:发布于 2026 年 3 月 31 日。包含与 NVLink Fusion 兼容的定制 XPU 合作以及 SiPh 技术联合开发,并提到 NVIDIA 对 Marvell 的 20 亿美元投资。

[3] Citrinihunterbrook HIMX Report Analysis (PhotonCap): Analysis of Himax Technologies’ wafer-level optics (WLO) and FAU technology. Covers coupling efficiency as a structural variable in SiPh device performance.

[3] Citrinihunterbrook HIMX Report Analysis(PhotonCap):对 Himax Technologies 晶圆级光学(WLO)与 FAU 技术的解析。讨论耦合效率作为影响 SiPh 器件性能的结构性变量。

[4] Aehr Wins Major New Silicon Photonics Customer: Press release, March 31, 2026. New customer win from a global leader in networking products and major data center optical transceiver supplier. Order includes FOX-XP (9 wafers parallel, up to 3,500W/wafer), FOX-NP systems, and WaferPak Contactors. Shipment scheduled in fiscal Q4 ending May 29, 2026.

[4] Aehr Wins Major New Silicon Photonics Customer:新闻稿,2026 年 3 月 31 日。新客户为全球网络产品领导者及数据中心光模块主要供应商。订单包含 FOX-XP(9 片晶圆并行、最高 3,500W/wafer)、FOX-NP 系统与 WaferPak Contactors。发货计划为截至 2026 年 5 月 29 日的 2026 财年 Q4。

[5] PSI Solutions: CM300xi-SiPh Product Page: Lists CM300xi-SiPh as “Industry standard for vertical coupling to wafer-level grating couplers.”

[5] PSI Solutions:CM300xi-SiPh 产品页:将 CM300xi-SiPh 列为“面向晶圆级光栅耦合器垂直耦合的行业标准”。

[6] FormFactor and Advantest Partner on SiPh Wafer-Level Test Cell: Announced November 2024. Confirms FormFactor SiPh systems are in use at over 100 leading SiPh manufacturers worldwide.

[6] FormFactor and Advantest Partner on SiPh Wafer-Level Test Cell:发布于 2024 年 11 月。确认 FormFactor 的 SiPh 系统已在全球超过 100 家领先 SiPh 制造商处使用。

[7] PI Fast Silicon Photonics Alignment: Physik Instrumente product catalog. High-precision multi-channel photonics alignment system integrated into CM300xi-SiPh. Developed in collaboration with Cascade Microtech (now FormFactor).

[7] PI Fast Silicon Photonics Alignment:Physik Instrumente 产品目录。集成到 CM300xi-SiPh 的高精度多通道光子对准系统。与 Cascade Microtech(现为 FormFactor)合作开发。

[8] FormFactor: Moving Silicon Photonics from the Lab to the Fab: Lists Keysight Technologies (instrumentation) and PI (positioning) as official “Preferred Partners” for SiPh WLT.

[8] FormFactor:Moving Silicon Photonics from the Lab to the Fab:将 Keysight Technologies(仪器)与 PI(定位)列为 SiPh WLT 的官方 Preferred Partners。

[9] FormFactor Pharos Probe Series: SiPh-specific probe card for CM300xi-SiPh. Integrates electrical pins and fiber arrays into a single interface.

[9] FormFactor Pharos Probe Series:面向 CM300xi-SiPh 的 SiPh 专用探针卡。把电学针脚与光纤阵列整合到同一接口中。

[10] FormFactor Acquires Keystone Photonics: December 15, 2025. Acquisition of optical coupling technology specialist to strengthen SiPh probing capabilities.

[10] FormFactor Acquires Keystone Photonics:2025 年 12 月 15 日。收购光耦合技术专家以增强 SiPh 探测能力。

Abstract

NVIDIA’s string of multibillion-dollar investments in Lumentum, Coherent, and Marvell over the span of a single month signals that the SiPh optical interconnect supply chain is moving into serious production mode. Before any of those wafers can go into CPO packaging, they have to pass wafer-level test (WLT). On March 17 at OFC, Teradyne introduced the Photon 100, a purpose-built integrated ATE for SiPh. A natural question for any investor: does this threaten the existing SiPh test equipment players? This article answers that question directly. The SiPh WLT ecosystem is divided into three non-overlapping roles: burn-in screening (AEHR), wafer optical probing (FORM), and optical measurement (KEYS). Photon 100 is not a competitor to any of them. It fills a position that did not previously exist. And when you consider where Teradyne sits in the broader semiconductor ATE market, this move carries a structural message for the entire SiPh test ecosystem.

Contents

  1. Why SiPh Testing Is So Demanding

  2. The Three Pillars: AEHR, FORM, and KEYS Aehr Test Systems: Burn-In Screening FormFactor: Wafer Optical Probing Keysight Technologies: Optical Measurement

  3. Teradyne Photon 100: What the Announcement Actually Means

  4. Summary: The Three Companies

  5. How Big Is This Market, and How Does It Grow

  6. Closing

NVIDIA announced three optical partnerships in the span of a month.

On March 2, it announced strategic partnerships with both Lumentum (LITE) and Coherent (COHR), investing $2 billion in each alongside multi-year purchase commitments.[1] On March 31, it added Marvell (MRVL) to that list, again with a $2 billion investment.[2] The Marvell announcement explicitly includes joint development of “optical interconnect solutions and silicon photonics technology” on top of the NVLink Fusion-compatible custom XPU collaboration.

NVIDIA's $4 Billion Photonics Bet: Broadcom Wasn't Wrong — But the Market Completely Misread the Signal

All three partnerships point at the same thing: SiPh-based optical interconnects as the backbone of next-generation AI infrastructure. Lumentum and Coherent now need to produce lasers and optical components at scale, and every one of those wafers has to pass test before it goes anywhere near a CPO package. You cannot secure Known Good Dies (KGD) without wafer-level test.

So who does the testing?

This article covers the three companies that own the SiPh wafer test ecosystem. It also breaks down what Teradyne’s (TER) Photon 100 announcement actually means for them, and where the market goes from here.

1. Why SiPh Testing Is So Demanding

CPO integrates GPU dies with Photonic Integrated Circuits (PIC) into a single package. If a defect shows up after packaging, you scrap the entire module, which can run thousands of dollars. Securing KGD before packaging is not optional; it is the entire reason WLT exists.

Two specific challenges make SiPh WLT uniquely difficult.

First, the compound semiconductors used as light sources, particularly Indium Phosphide (InP)-based laser diodes, are highly vulnerable to thermal degradation. Burn-in testing, applying concentrated electrical and thermal stress to screen out early failures (infant mortality), is mandatory.

Second, aligning a Fiber Array Unit (FAU) to the grating couplers on the wafer surface requires nanometer-level precision. FAU coupling efficiency is a determining factor in SiPh device performance,[3] and even slight misalignment produces insertion loss. Automating this alignment at production scale is the single biggest bottleneck in SiPh high-volume manufacturing.

Citrini/Hunterbrook HIMX Report Analysis: Yes, the COUPE Microlens Monopoly Is Real. But the Market Is Missing the Bigger Picture.

Two core challenges for SiPh WLT: burn-in screening for compound semiconductors, and automating nm-level optical alignment.

2. The Three Pillars

The SiPh WLT line breaks into three distinct layers. Each has a dedicated player, and none of them overlap.

Aehr Test Systems (AEHR): Burn-In Screening

Aehr Test Systems is a pure-play wafer-level burn-in (WLBI) company.

InP-based laser diodes are susceptible to both electrical and thermal stress. The goal of burn-in is to apply that stress early and hard, forcing weak devices to fail before they reach packaging. Doing this at the wafer level, before individual die separation, is what WLBI is about. The cost of discovering a defective laser after it has been packaged into a CPO module is far higher than catching it at the wafer stage.

https://formfactor.com/product/probes/specialty/pharos-probe-series/

Aehr’s core platform is the FOX-XP, capable of applying up to 3,500 watts per wafer in a high-power burn-in configuration while processing nine wafers in parallel. That high-power FOX-XP configuration is already installed and running in production at a world-leading SiPh IC supplier.[4]

On March 31, the same day as the NVIDIA-Marvell partnership announcement, Aehr disclosed a significant new customer win. A major new customer described as a global leader in networking products and a major supplier to the data center optical transceiver market placed an initial order for SiPh WLBI systems.[4] The customer is developing SiPh-based transceivers and Optical I/O products for hyperscale AI and cloud data center deployments. The order covers a FOX-XP system configured for nine wafers in parallel, a WaferPak Auto Aligner, multiple FOX-NP systems, and full production sets of WaferPak Contactors. Shipment is scheduled within Aehr’s fiscal Q4 ending May 29, 2026. The customer has already provided a forecast for additional systems, with follow-on orders possible as early as later this calendar year.

Aehr CEO Gayn Erickson highlighted that the customer purchased systems for both engineering qualification and high-volume production upfront, which reflects the urgency of the ramp already underway. As SiPh laser wafer production volumes increase, WLBI demand follows directly.

FormFactor (FORM): Wafer Optical Probing

https://www.psirep.com/products/formfactor-cascade-cm300xi-siph-300-mm-semi-fully-automated-probe-system-autonomous-silicon

FormFactor is the industry standard for SiPh wafer probing. Its distributor PSI Solutions lists the CM300xi-SiPh as the “Industry standard for vertical coupling to wafer-level grating couplers,”[5] and the system is currently in use at over 100 leading SiPh device manufacturers worldwide.[6]

https://photoncap.substack.com/p/nvidias-4-billion-photonics-bet-broadcom

The CM300xi-SiPh has a six-axis precision hexapod motion stage from Germany’s Physik Instrumente (PI) built directly into the system.[7] This handles the active alignment of the FAU to the wafer’s grating couplers at nm-level precision. FormFactor’s official documentation lists both PI (positioning) and Keysight Technologies (measurement instrumentation) as “Preferred Partners” for SiPh WLT,[8] which tells you a lot about how the ecosystem is structured.

https://photoncap.substack.com/p/citrinihunterbrook-himx-report-analysis

On top of the PI hexapod, the system ships with the Pharos probe card,[9] SiPh-Tools software, and the OptoVue autonomous calibration system, all packaged into a solution that is ready for production measurements immediately after installation. FormFactor’s own description: “first verified integrated measurement solution on the market that enables engineering and production-proven, optimized optical measurements right after installation, without further development.”

In December 2025, FormFactor acquired Keystone Photonics, a specialist in optical coupling technology for SiPh probing.[10] Management described the acquisition as reinforcing their “lab-to-fab” position, meaning test continuity from early R&D through high-volume production.

Keysight Technologies (KEYS): Optical Measurement

Keysight handles the optical measurement side as FormFactor’s official Preferred Partner, supplying the instruments that actually send and receive optical signals and extract measurement data.[8]

https://www.nasdaq.com/press-release/formfactor-and-advantest-partner-silicon-photonics-wafer-level-test-cell-enable-high

At the wafer level, that means Tunable Laser Sources (TLS) and Power Meters (PM) for measuring insertion loss (IL) and polarization-dependent loss (PDL), alongside Optical Spectrum Analyzers (OSA). At the package and module level, it means BERTs and oscilloscopes for verifying the signal integrity (SI) of 800G and 1.6T transceivers.

Historically, customers buying CM300xi-SiPh systems sourced these instruments separately, integrated the software themselves, and maintained the multi-vendor stack on their own. That worked well enough in engineering environments. At HVM scale, that integration burden becomes a production bottleneck.

3. Teradyne Photon 100: What the Announcement Actually Means

...

🔒 The full report and in-depth analysis are exclusive to PhotonCap subscribers.

https://photoncap.substack.com/p/the-three-pillars-of-siph-wafer-test

References & Sources

[1] NVIDIA’s $4 Billion Photonics Bet (PhotonCap): Deep-dive analysis of NVIDIA’s Lumentum and Coherent partnerships and the $4B investment. Covers the physics case for optical interconnects and CPO value chain implications.

[2] Marvell and NVIDIA Strategic Partnership: Announced March 31, 2026. NVLink Fusion-compatible custom XPU collaboration and joint SiPh technology development. NVIDIA’s $2 billion investment in Marvell.

[3] Citrinihunterbrook HIMX Report Analysis (PhotonCap): Analysis of Himax Technologies’ wafer-level optics (WLO) and FAU technology. Covers coupling efficiency as a structural variable in SiPh device performance.

[4] Aehr Wins Major New Silicon Photonics Customer: Press release, March 31, 2026. New customer win from a global leader in networking products and major data center optical transceiver supplier. Order includes FOX-XP (9 wafers parallel, up to 3,500W/wafer), FOX-NP systems, and WaferPak Contactors. Shipment scheduled in fiscal Q4 ending May 29, 2026.

[5] PSI Solutions: CM300xi-SiPh Product Page: Lists CM300xi-SiPh as “Industry standard for vertical coupling to wafer-level grating couplers.”

[6] FormFactor and Advantest Partner on SiPh Wafer-Level Test Cell: Announced November 2024. Confirms FormFactor SiPh systems are in use at over 100 leading SiPh manufacturers worldwide.

[7] PI Fast Silicon Photonics Alignment: Physik Instrumente product catalog. High-precision multi-channel photonics alignment system integrated into CM300xi-SiPh. Developed in collaboration with Cascade Microtech (now FormFactor).

[8] FormFactor: Moving Silicon Photonics from the Lab to the Fab: Lists Keysight Technologies (instrumentation) and PI (positioning) as official “Preferred Partners” for SiPh WLT.

[9] FormFactor Pharos Probe Series: SiPh-specific probe card for CM300xi-SiPh. Integrates electrical pins and fiber arrays into a single interface.

[10] FormFactor Acquires Keystone Photonics: December 15, 2025. Acquisition of optical coupling technology specialist to strengthen SiPh probing capabilities.

📋 讨论归档

讨论进行中…
